FRM220-2000MS is an IEEE 802.3ah OAM compliant copper to fiber Gigabit Ethernet solution designed to make conversion between 10/100/1000Base-T and 100/1000Base-X with SFP modules. With SNMP and Web-based management in the FRM220, the administrator can monitor, configure and control the activity of each series card and remotely connected OAM compliant converter. Converter settings include bandwidth control, duplex, and speed configuration, VLAN tagging, limited Q-in-Q support and SFP DDMI. When used as stand-alone converters, the 2000MS can be managed by a friendly Web Smart user interface via any web browser.
Ordering information:
FRM220-1000MS is a line card only at $150 each.
FRM220-1000MS-CH01 is a complete converter with chassis and AC adapter at $180 each.
FRM220-1000MS-CH01-AC is a complete converter with chassis and AC power at $190 each.
FRM220-1000MS-CH01-DC is a complete converter with chassis and DC power at $194 each.
•1-Port 10/100/1000Base-T to 100/1000Base-X SFP Converter
•Auto-Cross over for MDI/MDIX in TP port
•Auto-Negotiation or manual mode in TP port
•Supports flow control Enable or Disable
•Supports Jumbo Frame 16K Packet
•Ingress/Egress bandwidth control
•Supports in-band IEEE 802.3ah management
•Firmware upgrade via Web (for standalone unit only)
•Management Password Setting (for standalone unit only)
•Dying gasp (remote power failure detection on stand-alone)
•Supports Link Fault Pass-Through (LFPT ) Function
•Supports Auto Laser Shutdown (ALS) Function
•Supports D/D function for SFP fiber transceiver
•Supports 16 Tag VLAN Group
•RMON counters (for standalone unit only)
•USB Console port, Telnet, SNMP, Web Management

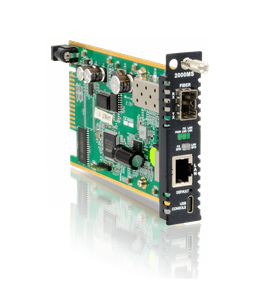

FRM220-2000MS, 100/1000Base-T to 100/1000Base-X SFP Managed GbE Converter Card
