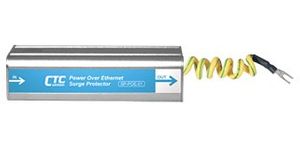

SP-POE-01 is a single port, Ethernet surge protector designed to protect all 8 lines used in a standard CAT5e cable. The product is compatible with 10/100 BaseT networks and 48V Power-over-Ethernet systems. The Standard 802.11af allows the methods of implementing PoE: The SP-POE-01 applies data to the pairs (pins 1/2 and pins 3/6) and power to the unused pairs (pins 4/5 and pins 7/8). The SP-POE-01 offered protection is provided on all 8 Ethernet pins (6.8V clamping on Data pins 1,2,3,6 and 53V clamping on POE pins 4,5,7,8). Network connections are made via standard female RJ45 connectors. Grounding is accomplished via a ground wire.
Please read this
Data Sheet for details.
