IGS-A804SM-8PH, 8x GbE RJ45 + 4x 100M/1G/2.5G SFP with 8x PoE 240W, 48VDC PoE Switch.
This industrial cyber-hardened managed PoE switch IGS-A804SM-8PH is one of our new generation designs and comes with 8 gigabit UTP ports, each complies with IEEE802.3af/at up to 30W PoE+ standard. Equipped with 4 100M/1G/2.5G SFP slots for fiber optic connectivity meet the requirements for extended transmission distance, fanless design, high MTBF, 4KV surge protection and supports wide temperature operation, 48VDC redundant power input, and is designed to comply with cybersecurity regulations. Suitable for heavy-duty applications in harsh environments such as industrial factory automation, data centers, smart transportation systems, military and utility market applications beyond environmental conditions commercial product specifications.
•Compliant with the IEC 62443-4-2* industrial cybersecurity standards
•48VDC (44~57VDC) redundant dual power input (IGS-A804SM-8PH)
•Provides 8-port IEEE 802.3af / 802.3at PoE+ output (30W per port, total 240W) (IGS-A804SM-8PH)
•Provides 5 ring instances that each can support μ-Ring, μ-Chain or Sub-Ring type for flexible uses. Supports up to 5 rings in one device (Please see CTC μ-Ring white paper for more details and more topology application)
•μ-Ring for redundant cabling, recovery time<20ms in 250 devices
•Supports EMS Management

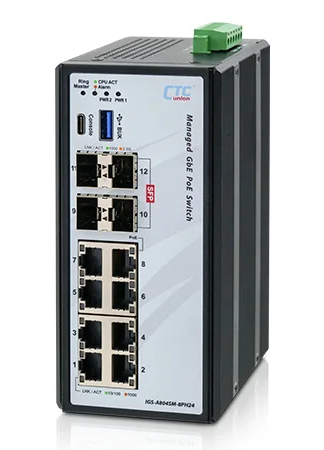

IGS-A804SM-8PH, Industrial Managed GbE PoE Switch
