Industrial managed PoE media converter with 1 Gigabit UTP port and 1 100/1000Mbps SFP slot for copper and fiber interface conversion, Supports PoE+ standard IEEE802.3af/at and can inject up to 30 watts of power into PoE equipment to meet the requirements for extended transmission distance, fanless design, high MTBF, supports wide operating temperature, and redundant 48VDC power input, it is suitable for heavy-duty applications in harsh environments such as industrial factory automation and data centers, intelligent transportation systems, military and utility market applications where environmental conditions exceed commercial product specifications.
•Conversion between 100/1000Base-T and 100/1000Base-X Fiber
•Supports Dual Rate (100/1000) SFP for selectable Fast or Gigabit speed on fiber
•Redundant dual DC power input 48VDC
•IP30 rugged metal housing and fanless
•Wide operating temperature -20~75°C
•Supports Digital Diagnostic Monitor Interface (DDMI) for SFP
•Supports EMS Management

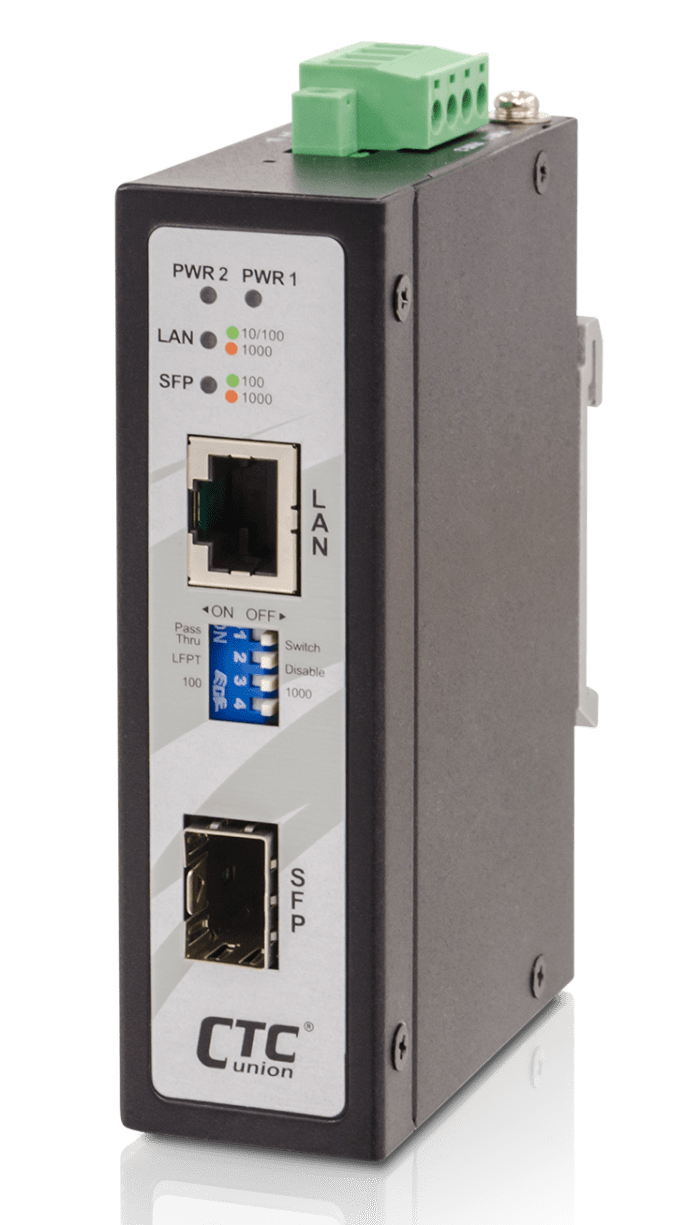

IMC-1001MS-PH, Industrial Managed PoE Media Converter
