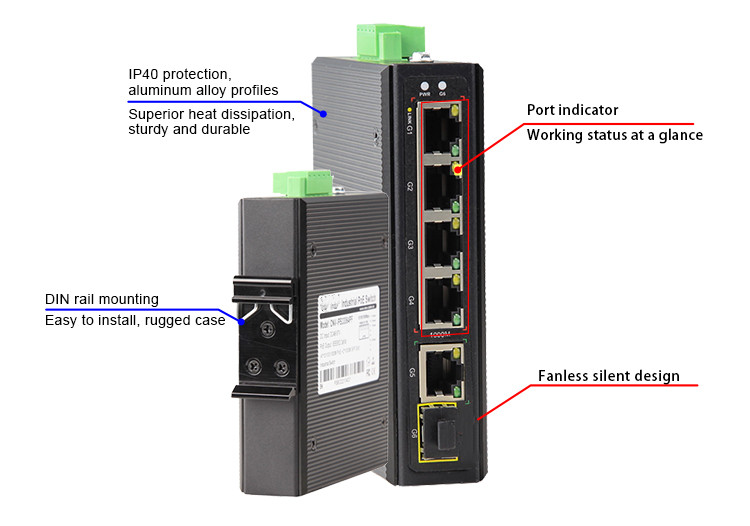

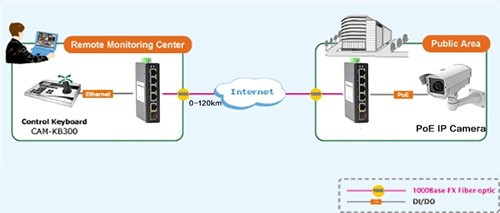

IPSW-G04-1GE1SFP is a full Gigabit industrial PoE switch with 5x10/100/1000Base-T RJ45 ports and 1x1000Base-X uplink SFP slot. Port 1-4 can support IEEE 802.3af/at PoE standards, single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal device such as wireless AP, IP camera, industrial sensor through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, sea transportation. Industrial scenes such as metallurgy and green energy construction form a cost-effective, stable and reliable communication networks. It is unmanaged, plug and play, no configuration needed and easy to use.
5*10/100/1000Base-T RJ45 ports and 1*1000M uplink SFP slot, port 1-4 can support PoE
Uplink: 1 Gigabit SFP slot and 1 Gigabit Ethernet port
Dual power supply redundant inputs
6KV port lightning protection
-40°C - +80°C operation temperature
Large cache military-level master chip configuration
IP40 protection aluminum alloy case
